HiFive

Premier P550

The Highest Performance
RISC-V CPU Development Board

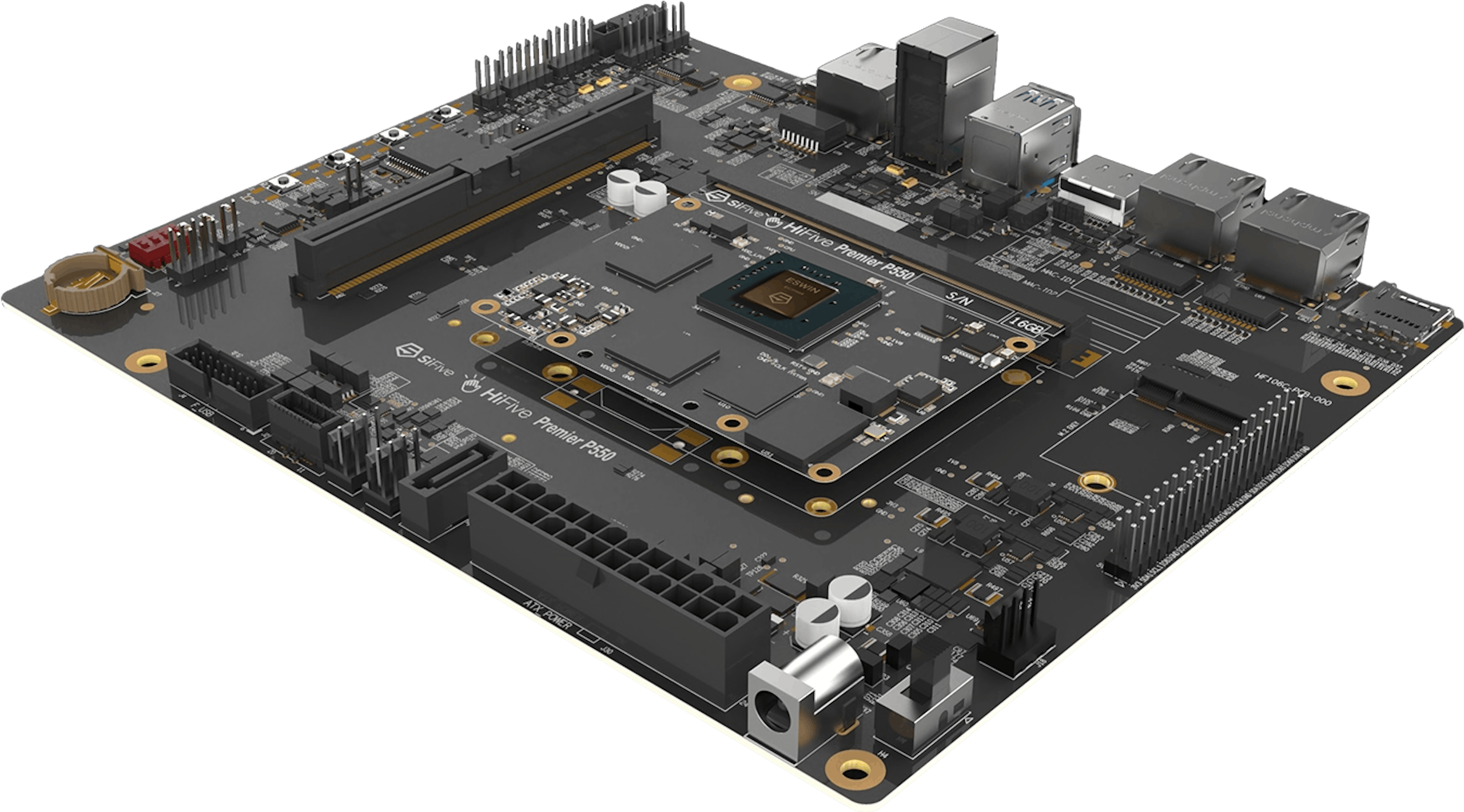

The HiFive™ Premier P550 provides a high-performance Linux development platform in a Mini-DTX Form Factor to enable the next wave of RISC-V Development.

Powered by the ESWIN EIC7700X SoC with a SiFive Quad-Core P550 64-bit Out-of-Order CPU cluster, this board offers exceptional performance and flexibility, enabling developers to create high-performance RISC-V applications and bring their projects to life.

  • Quad-core SiFive P550 - Performance CPU cores running @ 1.4GHz
  • 16GB and 32GB Samsung/Micron LPDDR5 + 128GB Samsung eMMC
  • Full featured PC IO
  • Ubuntu 24.04 Pre-Installed

PCle Gen3

High Speed Interface

Quad Core P550

SiFive RISC-V Processor Cores

16GB or 32GB LPDDR5

128GB eMMC Memory

USB 3.2

I/O Connectivity

Ubuntu Pre-Installed

  • Full featured Ubuntu 24.04
  • 6.6 Kernel
  • OTA updates
  • Vibrant Community Support

Product Features

SoC

ESWIN EIC7700X SoC featuring:

  • SiFive quad-core P550 CPU cores
  • Imagination AXM-8-256 onboard GPU
  • HW accelerated video encoding: up to 8K@25fps (currently not supported in software)
  • HW accelerated video decoding: up to 8K@50fps (currently not supported in software)
  • HW accelerated AI NPU with ~20 TOPS (currently not supported in software)
Networking
  • 2 10/100/1000 Ethernet RJ45 connectors
  • 1 Ethernet RJ45 connector for remote board management using dedicated MCU
  • 1 M.2 Key E connector for Wi-Fi / Bluetooth module (Interface via SDIO / UART)
Expansion Capabilities
  • 1 PCI Express Gen 3 x4 via a PCIe x16 slot
  • 2 Stacked USB 3.2 Gen 1 Type-A Connectors
  • 1 USB 19-pin male connector to support 2 USB 3.2 Gen 1 connectors on front panel
  • 1 USB type-E connector to support 1 USB 3.2 Gen Type-C connector on front panel
  • 1 JTAG Header
  • 1 SATA 3 connector (6Gb/s)
  • 1 microSD card connector
  • 1 USB Type-C (USB2 only) connector for debug UART/JTAG support through FT4232H
  • 1 HDMI 2.0 connector
  • Mini-ITX case compliant Front Panel Connector
  • 1 CR1220 battery holder for Real Time Clock
  • 3 fan headers
  • 1 header for audio interface (front panel stereo line-out and line-in / microphone signals)
  • 1 rear panel stereo jack with microphone input
  • 1 40-pin Peripheral I/O Header (1 I2C, 1x QSPI, 1x UART, 16x GPIO)

Note: Board requires standard ATX power supply – please check here for recommended model numbers

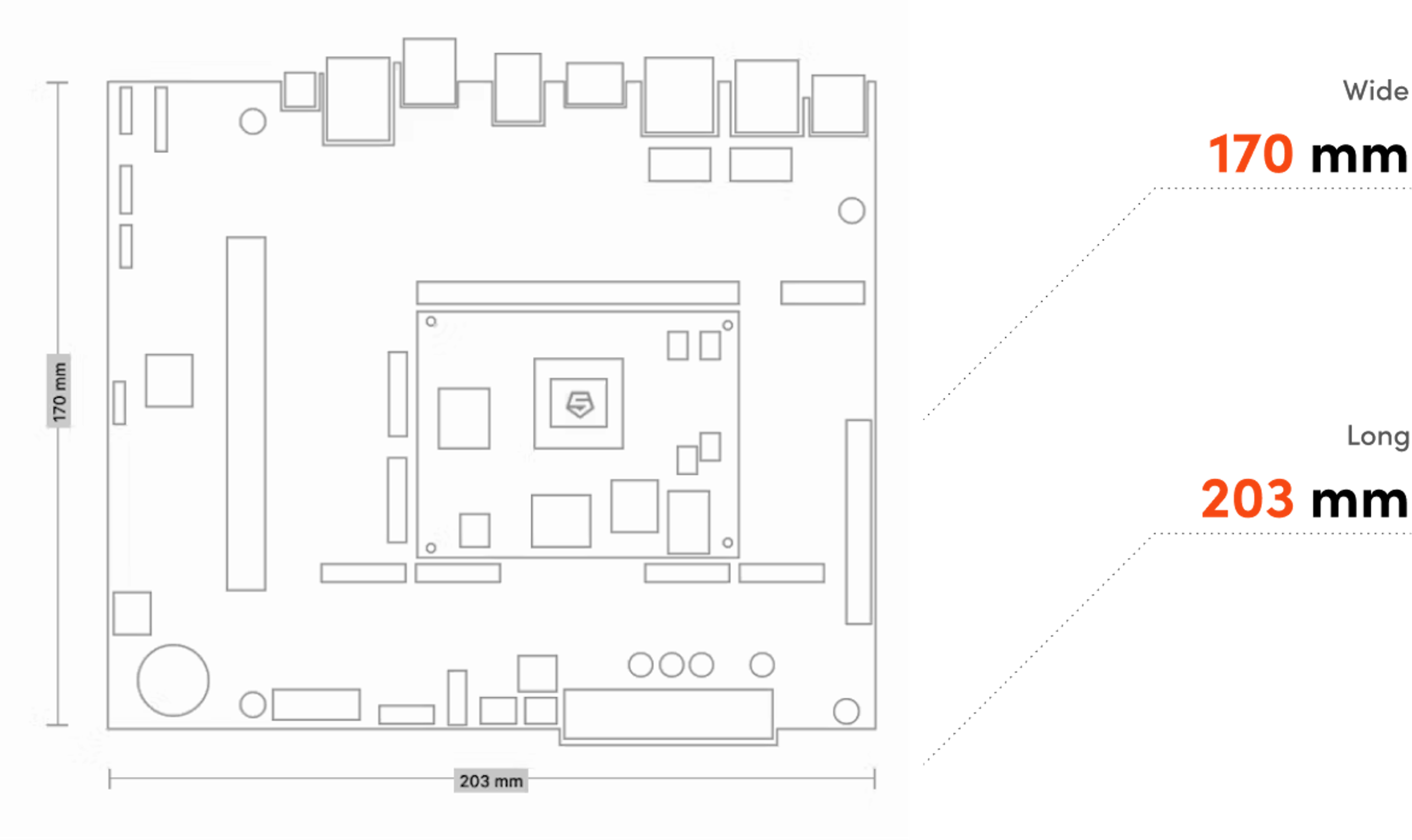

Dimensions

Partners

Ecosystem Solutions
  • Coming Soon
Community Solutions
